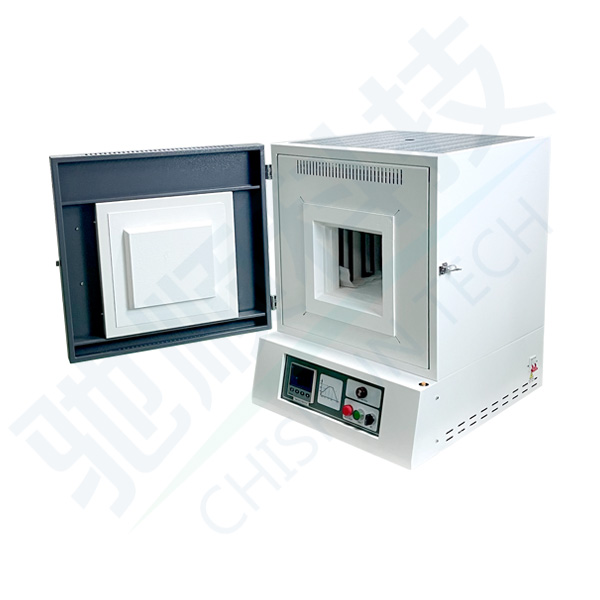

Name： BF1400 Muffle Furnace

Model： BF1400

Introduction： 1400℃ muffle furnace (box-type resistance furnace) is used in the sintering and sintering of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.

精度高溫場均衡快速升溫

Parameter
Video
Test case
Clients

1400℃ muffle furnace (box-type resistance furnace) is used in the sintering and sintering of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.

Furnace Shell

The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.

Strong double-layer metal frame shell structure, low furnace surface temperature.

Side-opening furnace door structure, the furnace door opens to the right, easy to operate.

Refractory Material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption.

Heating System

The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life

Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace

The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing

Temperature Control Panel

PID and SSR control mode, precise temperature control

Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600℃ and a long service life

The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

1、Advanced controllers that meet complex process requirements

2、Simple and direct operation, flexible programming

3、Programmable 30 program segments for a single curve

4、Over temperature and fault alarm, automatic safety protection

Specifications

Model	BF1400-I	BF1400-II	BF1400-III	BF1400-IV	BF1400-V	BF1400-VI
Chamber size （W xD xH）mm	150x150x150	200x200x200	200x300x200	250x300x250	300x400x300	300x500x300
Outer size（W xD xH）mm	490x530x750	575x610x825	590x680x835	610x700x860	650x770x900	975x930x1200
Max temperature	1400℃
Working temperature	1350℃
Power supply	220V/3KW	220V/5KW	220V/5KW	220V/6KW	380V/12KW	380V/14KW
Heating element	silicon carbide rod (SIC)
Chamber material	Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration
Temp.Precision	±1℃
Termocouple	S Type termocouple
Temperature controller	Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
Heating rate	1-30℃/min free adjustment
Furnace structure	Furnace temperature control integrated structure
Equipment protection	Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety protection	The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Optional	1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves
Competitive Advantage	1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance
